Home 2004 Isuzu Axiom S 3.5L V6 - Gas Fuel System Components

Fuel System Components for 2004 Isuzu Axiom

Vehicle

2004 Isuzu Axiom

Change Vehicle

Categories

Fuel System
Fuel System
Browse Categories

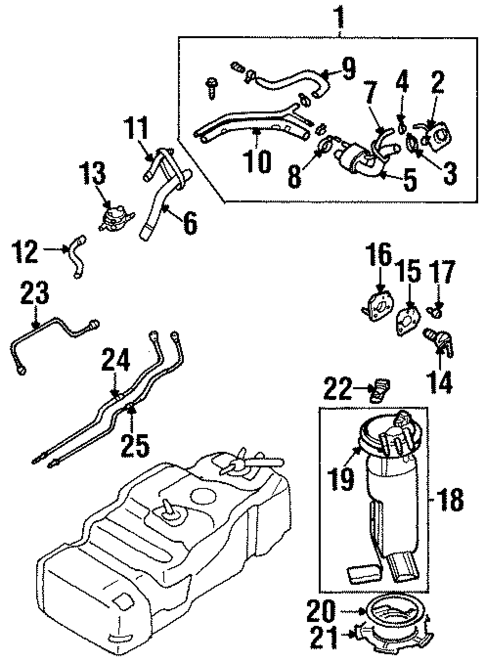

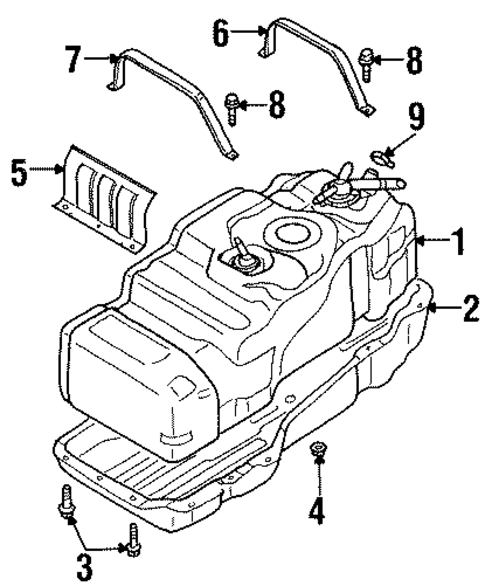

Fuel System Components for 2004 Isuzu Axiom #0 Fuel System Components for 2004 Isuzu Axiom #1
Fuel System Components for 2004 Isuzu Axiom #0
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
2
2
20
20
21
21
22
22
23
23
3
3
4
4
5
5
6
6
7
7
8
8
9
9
No.
Part # / Description / Price
Price
2
8972204042 - Fuel System: Filler Neck for Isuzu Image
Filler Neck
8972204042
Isuzu Isuzu
Description: Rodeo. 3.2l, 3.5l. Sending unit. Rodeo. 2.2l. Amigo, Rodeo Sport. 3.2, 3.5L, 2001-04.
View Details
View Details
3
8972371460 - Fuel System: Filler Neck Clamp for Isuzu Image
Filler Neck Clamp
8972371460
Isuzu Isuzu
Description: Sending unit.
$9.04
$9.04
4
8980080980 - Fuel System: Filler Neck Clip for Isuzu Image
Filler Neck Clip
8980080980
Isuzu Isuzu
Description: Sending unit.
$3.76
$3.76
5
8972358171 - Fuel System: Filler Tube for Isuzu Image
Filler Tube
8972358171
Isuzu Isuzu
Description: Sending unit, upper.
View Details
View Details
6
8972204100 - Fuel System: Filler Tube for Isuzu Image
Filler Tube
8972204100
Isuzu Isuzu
Description: 3.2, 3.5L, 2001-04, lower. Sending unit, lower.
$47.48
$47.48
7
8972204130 - Fuel System: Return Hose for Isuzu Image
Hose
8972204130
Isuzu Isuzu
Description: 3.2, 3.5L, 2001-04, recirculation. Sending unit. 2003.
View Details
View Details
8
8972371440 - Fuel System: Return Hose Clamp for Isuzu Image
Return Hose Clamp
8972371440
Isuzu Isuzu
Description: Sending unit.
$6.91
$6.91
9
8972204140 - Fuel System: Vent Hose for Isuzu Image
Vent Hose
8972204140
Isuzu Isuzu
Description: Sending unit. 3.2, 3.5L, 2001-04, ventilation.
View Details
View Details
10
8972204062 - Fuel System: Filler Pipe for Isuzu Image
Filler Pipe
8972204062
Isuzu Isuzu
Description: 3.2, 3.5L, 2001-04. Sending unit. 2003.
View Details
View Details
11
8972482090 - Fuel System: Breather Tube for Isuzu Image
Breather Tube
8972482090
Isuzu Isuzu
Description: 3.2, 3.5L, 2001-04, rear breather. Sending unit, upper.
$59.50
$59.50
12
8972240140 - Fuel System: Breather Tube for Isuzu Image
Breather Tube
8972240140
Isuzu Isuzu
Description: Sending unit, lower, from 2/02. 2.2L.
$30.95
$30.95
13
8972481860 - Fuel System: Bracket for Isuzu Image
Separator Bracket
8972481860
Isuzu Isuzu
Description: 3.2, 3.5L, 2001-04. Sending unit.
$6.39
$6.39
14
8972187410 - Fuel System: Filler Cap for Isuzu Image
Filler Cap
8972187410
Isuzu Isuzu
Description: 1998-00. 1998-02. Sending unit. 3.2L. 3.2, 3.5L, 2001-04.
Not For Sale
Not For Sale
15
8943401810 - Fuel System: Plate for Isuzu Image
Filler Cap Mount Plate
8943401810
Isuzu Isuzu
Description: 3.2, 3.5L, 2001-04. 1998-00. 1998-02. Sending unit. 2003.
$17.92
$17.92
16
8971068510 - Fuel System: Plate Rubber Seal for Isuzu Image
Plate Gasket
8971068510
Isuzu Isuzu
Description: 3.2, 3.5L, 2001-04. 1998-00. 1998-02. Sending unit. 2003.
$12.21
$12.21
17
8971488930 - Fuel System: Plate Screw for Isuzu Image
Plate Screw
8971488930
Isuzu Isuzu
Description: Sending unit.
$1.02
$1.02
18
8980321710 - Fuel System: Fuel Pump Assembly for Isuzu Image
Fuel Pump Assembly
8980321710
Isuzu Isuzu
Description: 2004 Rodeo.  3.5L (6VE1)
$579.52
$579.52
20
8973299350 - Fuel System: Seal for Isuzu Image
Fuel Pump Tank Seal
8973299350
Isuzu Isuzu
Description: 3.2, 3.5L, 2001-04. Sending unit. 2003.
$13.18
$13.18
21
8210102870 - Fuel System: Retainer for Isuzu Image
Fuel Pump Assembly Retainer
8210102870
Isuzu Isuzu
Description: 3.2, 3.5L, 2001-04. Sending unit. 2003.
View Details
View Details
22
8162383990 - Fuel System: Sensor for Isuzu Image
Fuel Vapor Sensor
8162383990
Isuzu Isuzu
Description: Item #509 in illustration.
$105.11
$105.11
23
8973189311 - Fuel System: Evaporator Tube for Isuzu Image
Evaporator Tube
8973189311
Isuzu Isuzu
Description: Sending unit, from 2/02.
$128.93
$128.93
No.
Part # / Description / Price
Price
1
8973299321 - Fuel System: Fuel Tank for Isuzu Image
Fuel Tank
8973299321
Isuzu Isuzu
Description: 3.2, 3.5L, 2001-04. Axiom. Rodeo. 3.2l,3.5l.
Not For Sale
Not For Sale
3
284510300 - Fuel System: Tank Shield Bolt for Isuzu Image
Tank Shield Bolt
0284510300
Isuzu Isuzu
Description: Fuel tank.
$2.18
$2.18
4
8971425950 - Fuel System: Tank Shield Nut for Isuzu Image
Tank Shield Nut
8971425950
Isuzu Isuzu
Description: Fuel tank.
$0.95
$0.95
5
8973187003 - Fuel System: Heat Shield for Isuzu Image
Heat Shield
8973187003
Isuzu Isuzu
Description: 3.2, 3.5L, 2001-04. Fuel tank. 2.2L.
$85.35
$85.35
6
8972203252 - Fuel System: Fuel Tank Strap for Isuzu Image
Tank Strap
8972203252
Isuzu Isuzu
Description: 3.2, 3.5L, 2001-04, front. Fuel tank, front.
Not For Sale
Not For Sale
7
8972203262 - Fuel System: Fuel Tank Strap for Isuzu Image
Tank Strap
8972203262
Isuzu Isuzu
Description: 3.2, 3.5L, 2001-04, rear. Fuel tank, rear.
Not For Sale
Not For Sale
8
284508250 - Fuel System: Fuel Tank Strap Bolt for Isuzu Image
Stabilizer Bar Bolt
0284508250
Isuzu Isuzu
Positions: Left
$2.07
$2.07
9
1097071330 - Fuel System: Clamp for Isuzu Image
Clamp
1097071330
Isuzu Isuzu
Description: Fuel tank.
$19.86
$19.86

Related Parts

Part # / Description / Price
Price
8192455270 - Fuel System: Fuel Pressure Regulator for Isuzu Image
Fuel Pressure Regulator
8192455270
Isuzu Isuzu
Description: Amigo, Rodeo, Rodeo Sport. 3.2l,from 4/98. Axiom. Trooper. VehiCROSS.
$237.15
$237.15
8251210740 - Fuel System: Fuel Filter for Isuzu Image
Fuel Filter
8251210740
Isuzu Isuzu
Description: 3.2, 3.5L, 2001-04. Sending unit. Amigo, Rodeo, Rodeo Sport.
$23.57
$23.57
8253265901 - Fuel System: Fuel Pump for Isuzu Image
Fuel Pump Assembly
8253265901
Isuzu Isuzu
Description: 1998-00. Axiom. 3.2, 3.5L, 2001-04. Sending unit, to 10/01. In Tank Assy. 2.2L.
$467.24
$467.24
8971254411 - Fuel System: Fuel Pump Relay for Isuzu Image
Fuel Pump Relay
8971254411
Isuzu Isuzu
Description: Amigo, Rodeo, Rodeo Sport. Fog lamp. Axiom.
$10.60
$10.60
8973126183 - Fuel System: Fuel Rail for Isuzu Image
Fuel Rail
8973126183
Isuzu Isuzu
Description: Axiom. Right. Amigo, Rodeo, Rodeo Sport. 3.5l. Left.
Not For Sale
Not For Sale
8973126193 - Fuel System: Fuel Rail for Isuzu Image
Fuel Rail
8973126193
Isuzu Isuzu
Description: Axiom. Left. Amigo, Rodeo, Rodeo Sport. 3.5l. Right.
$961.95
$961.95
8973126200 - Fuel System: Injector for Isuzu Image
Injector
8973126200
Isuzu Isuzu
Description: Axiom. Amigo, Rodeo, Rodeo Sport. 3.5l.
Not For Sale
Not For Sale
8973304780 - Fuel System: Injector Seal Kit for Isuzu Image
Injector Seal
8973304780
Isuzu Isuzu
Description: Axiom.
$9.72
$9.72
8973549910 - Fuel System: Pedal Travel Sensor for Isuzu Image
Pedal Travel Sensor
8973549910
Isuzu Isuzu
Description: Axiom.
$146.01
$146.01
8973628121 - Fuel System: Fuel Tank Cap for Isuzu Image
Filler Cap
8973628121
Isuzu Isuzu
Description: 3.2, 3.5L, 2001-04. 2003.
$32.92
$32.92
