Home 2001 Isuzu VehiCROSS Base 3.5L V6 - Gas Front Axle & Carrier

Front Axle & Carrier for 2001 Isuzu VehiCROSS

Vehicle

2001 Isuzu VehiCROSS

Change Vehicle

Categories

Suspension
Suspension
Browse Categories

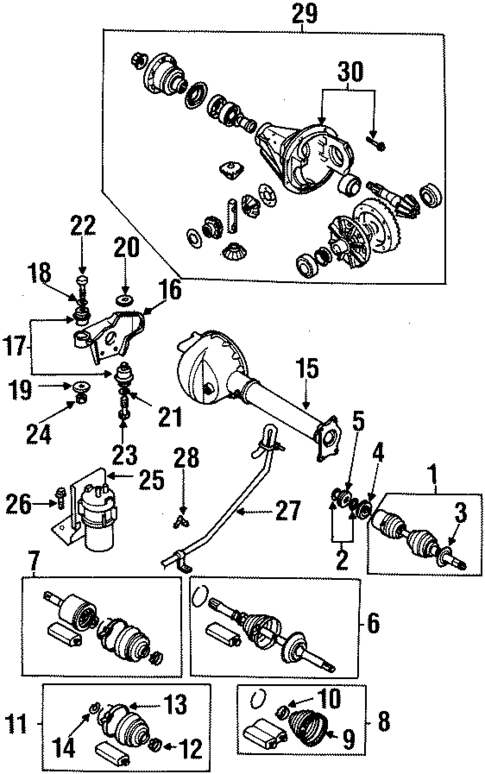

Front Axle & Carrier for 2001 Isuzu VehiCROSS #0
1
1
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
2
2
21
21
22
22
23
23
24
24
25
25
26
26
27
27
28
28
29
29
3
3
30
30
4
4
5
5
6
6
7
7
8
8
9
9
No.
Part # / Description / Price
Price
1
8973613500 - Suspension: Drive Shaft Assembly for Isuzu Image
Drive Shaft Assembly
8973613500
Isuzu Isuzu
Positions: Left
Description: VehiCROSS. Left.
Not For Sale
Not For Sale
1
8973613490 - Suspension: Drive Shaft Assembly for Isuzu Image
Axle Assembly
8973613490
Isuzu Isuzu
Positions: Right
Description: 1996-02. Trooper. Left. 1992-95, outer. VehiCROSS. Right.
$1,054.43
$1,054.43
2
9091800300 - Suspension: Drive Shaft Assembly Snap Ring for Isuzu Image
Drive Shaft Snap Ring
9091800300
Isuzu Isuzu
Positions: Left
Description: From 07/1987.
$2.32
$2.32
3
8980365600 - Suspension: Dust Seal for Isuzu Image
Axle Assembly Dust Seal
8980365600
Isuzu Isuzu
Positions: Right
Description: Amigo, Rodeo Sport built from 11/'00 - the end of the '03 Model Year.  Item #7 in illustration.
$28.68
$28.68
4
8973735550 - Suspension: Inner Seal for Isuzu Image
Drive Axle Shaft Seal
8973735550
Isuzu Isuzu
Positions: Right
Description: 4wdAmigo/Rodeo Sport built from 08/98 through the end of the '03 Model Year
Rodeo 2004 Model Year
Axiom  2004 Model YearItem #10 in illustration
$19.57
$19.57
5
8944077240 - Suspension: Bearing for Isuzu Image
Bearing
8944077240
Isuzu Isuzu
Positions: Left
Description: All models. 4wd, 1991-95. Rodeo. 1996-02. VehiCROSS.
$25.04
$25.04
6
8971368881 - Suspension: Outer Joint Assembly for Isuzu Image
Outer Joint Assembly
8971368881
Isuzu Isuzu
Positions: Right
Notes: PARTS: Part included with drive shaft assembly.
Description: Outer. VehiCROSS.
$647.09
$647.09
7
8971389790 - Suspension: Inner Joint Assembly for Isuzu Image
Cv Joint Kit
8971389790
Isuzu Isuzu
Positions: Left
Notes: PARTS: Part included with drive shaft assembly.
Description: From 06/1995. To 09/1995.
$677.55
$677.55
7
8971389780 - Suspension: Inner Joint Assembly for Isuzu Image
Inner Joint Assembly
8971389780
Isuzu Isuzu
Positions: Right
Notes: PARTS: Part included with drive shaft assembly.
Description: Rodeo. Right side. 4wd, 1996-97. From 10/1995.
$397.94
$397.94
8
8971389811 - Suspension: Outer Boot for Isuzu Image
Cv Joint Boot Kit
8971389811
Isuzu Isuzu
Positions: Right
Notes: PARTS: Part included with outer joint assembly.
Description: Rodeo. Outer. VehiCROSS. From 06/1995. To 09/1995. From 10/1995.
$154.97
$154.97
9
8971314010 - Suspension: Outer Boot Clamp for Isuzu Image
Cv Joint Boot Band
8971314010
Isuzu Isuzu
Positions: Right
Notes: PARTS: Part included with outer boot.
Description: Outer.
$12.18
$12.18
10
8943129310 - Suspension: Outer Boot Clamp for Isuzu Image
Cv Joint Boot Band
8943129310
Isuzu Isuzu
Positions: Left
Notes: PARTS: Part included with outer boot.
Description: Inner.
$8.25
$8.25
11
8971389800 - Suspension: Inner Boot for Isuzu Image
Cv Joint Boot Kit
8971389800
Isuzu Isuzu
Positions: Left
Notes: PARTS: Part included with inner joint assembly.
Description: 4wd, 1996-97, inner. Rodeo. From 06/1995. To 09/1995. From 10/1995.
$180.29
$180.29
12
8971389380 - Suspension: Inner Boot Clamp for Isuzu Image
Inner Boot Clamp
8971389380
Isuzu Isuzu
Positions: Left
Notes: PARTS: Part included with inner boot.
Description: Outer.
$15.06
$15.06
13
8943129290 - Suspension: Inner Boot Clamp for Isuzu Image
Cv Joint Boot Band
8943129290
Isuzu Isuzu
Positions: Left
Notes: PARTS: Part included with inner boot.
Description: Inner.
$12.18
$12.18
14
8971314020 - Suspension: Inner Boot Retainer Ring for Isuzu Image
Drive Shaft Snap Ring
8971314020
Isuzu Isuzu
Positions: Left
Notes: PARTS: Part included with inner boot.
$2.17
$2.17
15
8970182300 - Suspension: Axle Housing for Isuzu Image
Axle Housing
8970182300
Isuzu Isuzu
Description: Rodeo. 4wd, 1991-95. Pick-up. 1992-95. Trooper. Amigo. To 1/93. From 2/93. VehiCROSS. Without space cab.
$1,264.66
$1,264.66
16
8971319411 - Suspension: Mount Bracket for Isuzu Image
Bracket
8971319411
Isuzu Isuzu
Positions: Left
Description: 1996-02, with torque control. VehiCROSS. Left.
$182.96
$182.96
16
8971142771 - Suspension: Mount Bracket for Isuzu Image
Bracket
8971142771
Isuzu Isuzu
Positions: Right
Description: 1996-02, with torque control. VehiCROSS. Right.
$151.99
$151.99
17
8970182400 - Suspension: Mount Bracket Bushing for Isuzu Image
Axle Housing Bushing
8970182400
Isuzu Isuzu
Positions: Right
Notes: PARTS: Part included with mount bracket.
Description: 4wd, 1991-95. 1996-02. 1992-95. 4wd, 1996-97. VehiCROSS.
$25.61
$25.61
18
8944572730 - Suspension: Mount Bracket Washer for Isuzu Image
Axle Housing Washer
8944572730
Isuzu Isuzu
Positions: Left
Description: Front upper.
Not For Sale
Not For Sale
19
8944197720 - Suspension: Mount Bracket Washer for Isuzu Image
Axle Housing Washer
8944197720
Isuzu Isuzu
Positions: Left
Description: 4wd, 1991-95. Front lower. Rear upper.
$12.31
$12.31
21
916147140 - Suspension: Mount Bracket Washer for Isuzu Image
Axle Housing Washer
0916147140
Isuzu Isuzu
Positions: Left
Description: Rear lower.
$2.68
$2.68
22
9910664800 - Suspension: Mount Bracket Bolt for Isuzu Image
Mount Bracket Bolt
9910664800
Isuzu Isuzu
Positions: Right
Description: Front.
$8.27
$8.27
23
8944523392 - Suspension: Mount Bracket Bolt for Isuzu Image
Axle Housing Mount Bolt
8944523392
Isuzu Isuzu
Positions: Right
Description: 4wd, 1991-95, upper. Lower. Rear.
Not For Sale
Not For Sale
24
911105140 - Suspension: Mount Bracket Nut for Isuzu Image
Stud Plate Nut
0911105140
Isuzu Isuzu
Positions: Left
Description: Inner.
$2.68
$2.68
25
8971688832 - Suspension: Vacuum Tank for Isuzu Image
Vacuum Tank
8971688832
Isuzu Isuzu
$141.01
$141.01
26
284806160 - Suspension: Vacuum Tank Bolt for Isuzu Image
Mount Bracket Bolt
0284806160
Isuzu Isuzu
Description: 2000-04. 3.2 & 3.5L. 2.2L. 1998-99.
$4.18
$4.18
27
47503000 - Suspension: Vacuum Hose for Isuzu Image
Fuel Evap Hose
0047503000
Isuzu Isuzu
Description: Item #235 in illustration
$106.90
$106.90
28
8942269430 - Suspension: Breather for Isuzu Image
Breather Tube
8942269430
Isuzu Isuzu
Description: 4wd.
$4.97
$4.97
29
8972412730 - Suspension: Differential Assembly for Isuzu Image
Differential Assembly
8972412730
Isuzu Isuzu
Description: VehiCROSS.
Not For Sale
Not For Sale
30
8971838901 - Suspension: Carrier for Isuzu Image
Carrier Case
8971838901
Isuzu Isuzu
Notes: PARTS: Part included with differential assembly.
Description: Trooper. With tod. VehiCROSS. To 12/99. To 11/01.
$966.64
$966.64
