Home 1998 Isuzu Oasis S 2.3L L4 - Gas Instrument Panel

Instrument Panel for 1998 Isuzu Oasis

Vehicle

1998 Isuzu Oasis

Change Vehicle

Categories

Body
Body
Browse Categories

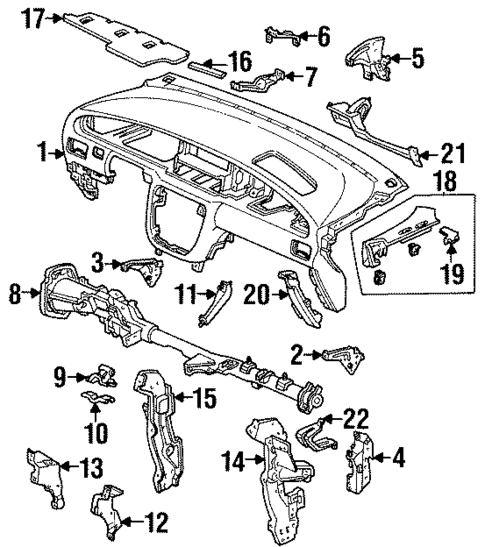

Instrument Panel for 1998 Isuzu Oasis #0 Instrument Panel for 1998 Isuzu Oasis #1
Instrument Panel for 1998 Isuzu Oasis #0
1
1
10
10
11
11
12
12
13
13
14
14
15
15
16
16
17
17
18
18
19
19
2
2
20
20
21
21
22
22
3
3
4
4
5
5
6
6
7
7
8
8
9
9
No.
Part # / Description / Price
Price
1
5862057230 - Body: Instrument Panel for Isuzu Image
Instrument Panel
5862057230
Isuzu Isuzu
$1,275.43
$1,275.43
2
5862038870 - Body: Instrument Panel Upper Bracket for Isuzu Image
Instrument Panel Upper Bracket
5862038870
Isuzu Isuzu
Positions: Right
$15.38
$15.38
3
5862038900 - Body: Instrument Panel Upper Bracket for Isuzu Image
Instrument Panel Upper Bracket
5862038900
Isuzu Isuzu
Positions: Left
$15.38
$15.38
4
5862038890 - Body: Instrument Panel Side Bracket for Isuzu Image
Instrument Panel Side Bracket
5862038890
Isuzu Isuzu
Positions: Right
$46.86
$46.86
5
5862038880 - Body: Instrument Panel Side Bracket for Isuzu Image
Instrument Panel Side Bracket
5862038880
Isuzu Isuzu
Positions: Left
$42.27
$42.27
6
5862038920 - Body: Mount Bracket for Isuzu Image
Mount Bracket
5862038920
Isuzu Isuzu
Description: Meter side, upper.
$9.66
$9.66
7
5862038930 - Body: Mount Bracket for Isuzu Image
Mount Bracket
5862038930
Isuzu Isuzu
Description: Meter side, lower.
$21.13
$21.13
8
5862020290 - Body: Reinforced Beam for Isuzu Image
Reinforced Beam
5862020290
Isuzu Isuzu
$377.56
$377.56
9
5862032320 - Body: Reinforced Beam Pivot for Isuzu Image
Reinforced Beam Pivot
5862032320
Isuzu Isuzu
Description: Steering column.
$30.61
$30.61
10
5862032270 - Body: Reinforced Beam Holder for Isuzu Image
Reinforced Beam Holder
5862032270
Isuzu Isuzu
$17.29
$17.29
11
5862033720 - Body: Reinforced Beam Joint for Isuzu Image
Reinforced Beam Joint
5862033720
Isuzu Isuzu
$12.07
$12.07
12
5862038910 - Body: Frame for Isuzu Image
Frame
5862038910
Isuzu Isuzu
Positions: Right
Description: Lower center.
$20.17
$20.17
13
5862038940 - Body: Frame for Isuzu Image
Frame
5862038940
Isuzu Isuzu
Positions: Left
Description: Lower center.
$21.37
$21.37
14
5862038840 - Body: Center Support for Isuzu Image
Center Support
5862038840
Isuzu Isuzu
Positions: Right
$114.14
$114.14
15
5862038830 - Body: Center Support for Isuzu Image
Center Support
5862038830
Isuzu Isuzu
Positions: Left
$186.45
$186.45
16
5862039360 - Body: Front Seal for Isuzu Image
Front Seal
5862039360
Isuzu Isuzu
$5.31
$5.31
17
5862038760 - Body: Insulator Pad for Isuzu Image
Insulator Pad
5862038760
Isuzu Isuzu
$20.93
$20.93
18
5862057240 - Body: Side Trim Panel for Isuzu Image
Side Trim Panel
5862057240
Isuzu Isuzu
Positions: Right
$96.07
$96.07
18
5862057250 - Body: Side Trim Panel for Isuzu Image
Side Trim Panel
5862057250
Isuzu Isuzu
Positions: Left
$96.07
$96.07
19
5862047370 - Body: Side Trim Panel Clip for Isuzu Image
Side Trim Panel Clip
5862047370
Isuzu Isuzu
Positions: Right
Notes: PARTS: Part is included with side trim panel.
$5.76
$5.76
20
5862065120 - Body: Lower Trim for Isuzu Image
Lower Trim
5862065120
Isuzu Isuzu
Description: Right side.
$23.07
$23.07
21
5862039700 - Body: Knee Bolster for Isuzu Image
Knee Bolster
5862039700
Isuzu Isuzu
Description: Driver side.
$67.33
$67.33
22
5862039720 - Body: Mount Bracket for Isuzu Image
Mount Bracket
5862039720
Isuzu Isuzu
Description: Passenger bolster.
$13.44
$13.44

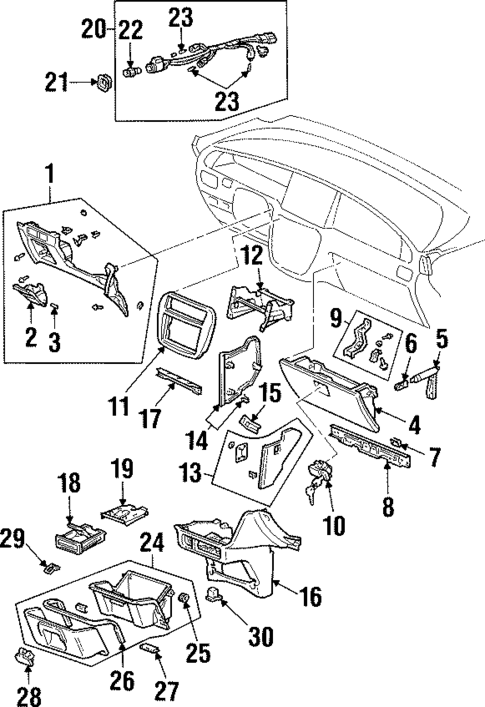

Instrument Panel for 1998 Isuzu Oasis #1
1
1
10
10
11
11
12
12
15
15
16
16
17
17
18
18
19
19
2
2
20
20
21
21
22
22
23
23
23
23
24
24
25
25
26
26
27
27
28
28
29
29
3
3
30
30
4
4
5
5
6
6
7
7
8
8
9
9
No.
Part # / Description / Price
Price
1
5862065160 - Body: Lower Trim for Isuzu Image
Lower Trim
5862065160
Isuzu Isuzu
Description: Glove box & lower trim, driver side.
$144.07
$144.07
2
5862065270 - Body: Coin Holder for Isuzu Image
Coin Holder
5862065270
Isuzu Isuzu
Notes: PARTS: Part is included with left lower trim.
Description: Glove box & lower trim.
$51.12
$51.12
3
5862051330 - Body: Coin Holder Spring for Isuzu Image
Coin Holder Spring
5862051330
Isuzu Isuzu
Notes: PARTS: Part is included with left lower trim.
Description: Glove box & lower trim.
$2.67
$2.67
4
5862039390 - Body: Glove Box for Isuzu Image
Glove Box
5862039390
Isuzu Isuzu
Description: Glove box & lower trim.
$190.17
$190.17
5
5862039460 - Body: Damper for Isuzu Image
Damper
5862039460
Isuzu Isuzu
Description: Glove box & lower trim.
$57.43
$57.43
6
5862039420 - Body: Damper Retainer for Isuzu Image
Damper Retainer
5862039420
Isuzu Isuzu
Description: Glove box & lower trim.
$4.40
$4.40
7
5862039440 - Body: Hinge for Isuzu Image
Hinge
5862039440
Isuzu Isuzu
Description: Glove box & lower trim.
$6.83
$6.83
8
5862053150 - Body: Frame for Isuzu Image
Frame
5862053150
Isuzu Isuzu
Description: Glove box & lower trim.
$34.54
$34.54
9
5862039500 - Body: Striker for Isuzu Image
Striker
5862039500
Isuzu Isuzu
Description: Glove box & lower trim.
$34.60
$34.60
10
5862065230 - Body: Lock Assembly for Isuzu Image
Lock Assembly
5862065230
Isuzu Isuzu
Description: Oasis. Glove box & lower trim.
$60.63
$60.63
11
5862039100 - Body: Radio Panel for Isuzu Image
Radio Panel
5862039100
Isuzu Isuzu
Description: Glove box & lower trim.
$98.60
$98.60
12
5862065130 - Body: Frame for Isuzu Image
Frame
5862065130
Isuzu Isuzu
Description: Glove box & lower trim.
$40.46
$40.46
15
5862039200 - Body: Side Panel Bracket for Isuzu Image
Side Panel Bracket
5862039200
Isuzu Isuzu
Description: Glove box & lower trim.
$9.61
$9.61
16
5862065140 - Body: Center Panel for Isuzu Image
Center Panel
5862065140
Isuzu Isuzu
Description: Glove box & lower trim.
$145.22
$145.22
17
5862039130 - Body: Frame for Isuzu Image
Frame
5862039130
Isuzu Isuzu
Description: Glove box & lower trim.
$31.77
$31.77
18
5862065250 - Body: Ashtray for Isuzu Image
Ashtray
5862065250
Isuzu Isuzu
Description: Glove box & lower trim.
$69.61
$69.61
19
5862039620 - Body: Ashtray Holder for Isuzu Image
Ashtray Holder
5862039620
Isuzu Isuzu
Description: Glove box & lower trim.
$43.47
$43.47
20
5862029300 - Body: Lighter Assembly for Isuzu Image
Lighter Assembly
5862029300
Isuzu Isuzu
Description: Glove box & lower trim.
$106.99
$106.99
21
5862065260 - Body: Lighter Assembly Bezel for Isuzu Image
Lighter Assembly Bezel
5862065260
Isuzu Isuzu
Description: Glove box & lower trim.
$7.81
$7.81
22
5862029310 - Body: Element for Isuzu Image
Element
5862029310
Isuzu Isuzu
Notes: PARTS: Part is included in Lighter assembly.
Description: Glove box & lower trim.
$38.76
$38.76
23
5862027710 - Body: Bulb for Isuzu Image
Bulb
5862027710
Isuzu Isuzu
Notes: PARTS: Part is included in Lighter assembly.
Description: Glove box & lower trim.
$5.16
$5.16
24
5862065150 - Body: Storage Box for Isuzu Image
Storage Box
5862065150
Isuzu Isuzu
Description: Glove box & lower trim.
$100.07
$100.07
25
5862034200 - Body: Storage Box Stopper for Isuzu Image
Storage Box Stopper
5862034200
Isuzu Isuzu
Notes: PARTS: Part is included with storage box.
Description: Glove box & lower trim.
$1.84
$1.84
26
5862039150 - Body: Storage Box Seal Strip for Isuzu Image
Storage Box Seal Strip
5862039150
Isuzu Isuzu
Notes: PARTS: Part is included with storage box.
Description: Glove box & lower trim.
$12.42
$12.42
27
5862039430 - Body: Hinge for Isuzu Image
Hinge
5862039430
Isuzu Isuzu
Description: Glove box & lower trim.
$5.27
$5.27
28
5862065240 - Body: Lock for Isuzu Image
Lock
5862065240
Isuzu Isuzu
Description: Glove box & lower trim.
$35.56
$35.56
29
5862039530 - Body: Striker for Isuzu Image
Striker
5862039530
Isuzu Isuzu
Description: Glove box & lower trim.
$13.33
$13.33
30
5862039140 - Body: Holder for Isuzu Image
Holder
5862039140
Isuzu Isuzu
Description: Glove box & lower trim, storage box lamp.
$7.68
$7.68
