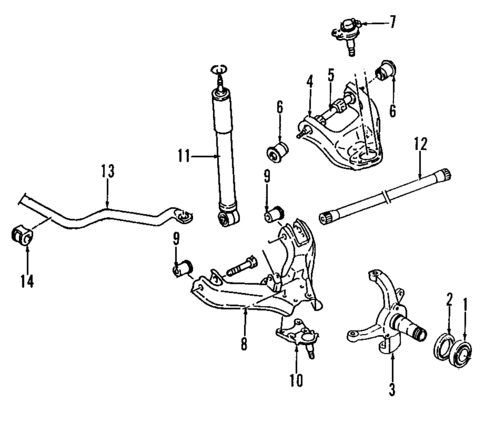

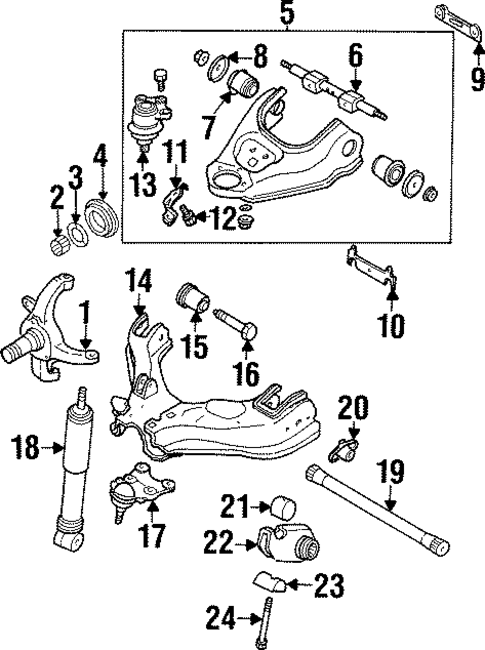

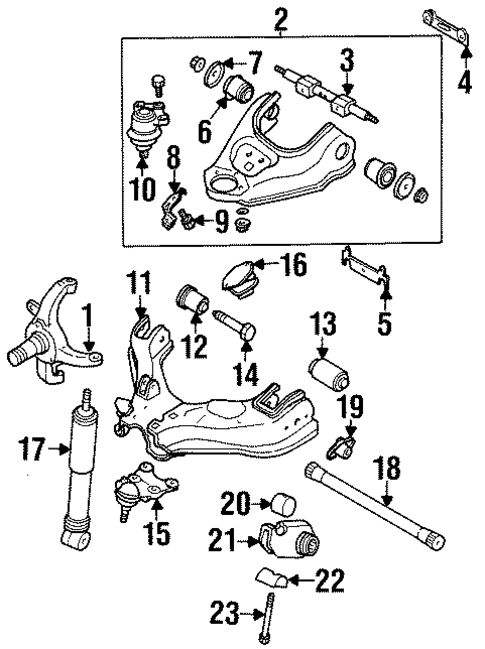

Suspension Components for 1991 Isuzu Rodeo
No.
Part # / Description / Price
Price
1
Spindle
Isuzu
Isuzu Positions: Right
Description: Rodeo. Pick-up. Right. Usa built. 4wd, us built.
$516.53
$516.53
1
$383.35
2
$24.98
3
Knuckle Washer Isuzu
Isuzu Positions: Right
Description: 4wd. Thrust. 1987-91. Amigo, Rodeo, Rodeo Sport. Trooper. VehiCROSS.
$3.40
$3.40
6
Upper Control Arm Shaft Isuzu
Isuzu Positions: Right
Notes: PARTS: Part included with upper control arm.
Description: 2wd. 4wd. Rodeo. 1987-91. Amigo. Trooper ii. Pick-up. All models.
$59.29
$59.29
7
Suspension Control Arm Bushing Isuzu
Isuzu Positions: Left
Notes: PARTS: Part included with upper control arm.
Description: 2wd. 4wd. All models. 1987-91. Rodeo. Trooper ii. Amigo. Pick-up. To 10/94.
$23.07
$23.07
8
Shaft Plate Isuzu
Isuzu Positions: Left
Notes: PARTS: Part included with upper control arm.
Description: 4wd. 2wd.
$4.97
$4.97
9
$14.38
10
$3.40
11
Mount Bracket Isuzu
Isuzu Positions: Right
Notes: PARTS: Part included with upper control arm.
Description: 2wd, brake hose.
$8.25
$8.25
12
Mount Bracket Bolt Isuzu
Isuzu Positions: Right
Notes: PARTS: Part included with upper control arm.
Description: 4wd.
$2.75
$2.75
13
Upper Ball Joint Isuzu
Isuzu Positions: Left
Notes: PARTS: Part included with upper control arm.
Description: 4wd. Rodeo. Amigo. All models. To 11/1995.
$119.75
$119.75
14
Lower Control Arm Isuzu
Isuzu Positions: Left
Description: 4wd. 1987-91. Rodeo. Left side. Trooper ii. Amigo. Pick-up. To 11/1995.
$312.08
$312.08
14
Lower Control Arm Isuzu
Isuzu Positions: Right
Description: 4wd. 1987-91. Rodeo. Right side. Trooper ii. Amigo. Pick-up. To 11/1995.
$312.08
$312.08
15
Lower Control Arm Rear Bushing Isuzu
Isuzu Positions: Left
Description: 4wd, 18.2mm. 1987-91. Rodeo. Trooper ii. 4wd, rear. 2wd. Axiom. Pick-up. VehiCROSS.
$33.06
$33.06
15
Lower Control Arm Front Bushing Isuzu
Isuzu Positions: Left
Description: 4wd, 16mm. Rodeo. 1987-91. Trooper ii. 4wd, front. 2wd, front. Pick-up. To 11/1995.
$20.56
$20.56
16
Lower Control Arm Shaft Isuzu
Isuzu Positions: Left
Description: Amigo 4wd, rear. 2wd, rear. Pick-up.
$37.17
$37.17
16
$21.43
17
Lower Ball Joint Isuzu
Isuzu Positions: Right
Description: 4wd. Rodeo. 2wd. Amigo. Trooper. Axiom. All models. Pick-up.
Not For Sale
Not For Sale
18
$65.81
19
$178.41
21
$15.90
22
Torsion Bar Arm Isuzu
Isuzu Positions: Left
Description: 2wd, to 4/95. 4wd, to 4/95. Amigo. 2wd, from 5/95. 1987-91, height.
$71.39
$71.39
23
$9.98
24
$14.09
No.
Part # / Description / Price
Price
2
Upper Control Arm Isuzu
Isuzu Positions: Left
Description: 4wd. Pick-up. 2wd, 2.6 & 3.1L. Left side. Amigo. Rodeo. To 10/1992. Incl.Ball Joint & Bushings.
$589.37
$589.37
2
Upper Control Arm Isuzu
Isuzu Positions: Right
Description: 4wd. Pick-up. Amigo. 2wd, 2.6 & 3.1L. Right side. Rodeo. Incl.Ball Joint & Bushings. To 11/1995. From 11/92. To 10/1992.
$602.70
$602.70
8
Mount Bracket Isuzu
Isuzu Positions: Left
Notes: PARTS: Part included with upper control arm.
Description: 4wd, brake hose.
$8.25
$8.25
14
Lower Control Arm Shaft Isuzu
Isuzu Positions: Right
Description: Amigo 4wd, rear. 2wd, rear. Pick-up.
$37.17
$37.17
16
RH Lower Control Arm Stopper Isuzu
Isuzu Positions: Right
Description: '86-'91 TROOPER'88-'95 P'UP'91-'97 RODEO'89-'94 AMIGOItem #104 in illustration
$43.01
$43.01
16
LH Lower Control Arm Stopper Isuzu
Isuzu Positions: Left
Description: '86-'91 TROOPER'89-'94 AMIGO'88-'95 P'UP'97-'97 RODEOItem #104 in illustration
$43.01
$43.01
No.
Part # / Description / Price
Price
3
$227.78
4
$632.73
5
$516.53
5
$383.35
6
Upper Control Arm Isuzu
Isuzu Description: 4wd. Pick-up. 2wd, 2.6 & 3.1L. Left side. Amigo. Rodeo. To 10/1992. Incl.Ball Joint & Bushings.
$589.37
$589.37
9
$119.75
10
Lower Control Arm Isuzu
Isuzu Description: 4wd. 1987-91. Rodeo. Right side. Trooper ii. Amigo. Pick-up. To 11/1995.
$312.08
$312.08
10
Lower Control Arm Isuzu
Isuzu Description: 4wd. 1987-91. Rodeo. Left side. Trooper ii. Amigo. Pick-up. To 11/1995.
$312.08
$312.08
11
Lower Control Arm Rear Bushing Isuzu
Isuzu Description: 4wd, 18.2mm. 1987-91. Rodeo. Trooper ii. 4wd, rear. 2wd. Axiom. Pick-up. VehiCROSS.
$33.06
$33.06
12
Lower Ball Joint Isuzu
Isuzu Description: 4wd. Rodeo. 2wd. Amigo. Trooper. Axiom. All models. Pick-up.
Not For Sale
Not For Sale
15
$139.46
No.
Part # / Description / Price
Price
2
Wheel Bearing Oil Seal Isuzu
Isuzu Description: All models. 1987-91. 2wd, 1998-01. 4wd, 1998-01. Amigo. VehiCROSS. Axiom. To 10/2001.
$13.65
$13.65
4
Upper Control Arm Isuzu
Isuzu Description: 4wd. Pick-up. Amigo. 2wd, 2.6 & 3.1L. Right side. Rodeo. Incl.Ball Joint & Bushings. To 11/1995. From 11/92. To 10/1992.
$602.70
$602.70
5
Upper Control Arm Shaft Isuzu
Isuzu Description: 2wd. 4wd. Rodeo. 1987-91. Amigo. Trooper ii. Pick-up. All models.
$59.29
$59.29
6
Suspension Control Arm Bushing Isuzu
Isuzu Description: 2wd. 4wd. All models. 1987-91. Rodeo. Trooper ii. Amigo. Pick-up. To 10/94.
$23.07
$23.07
9
Lower Control Arm Front Bushing Isuzu
Isuzu Description: 4wd, 16mm. Rodeo. 1987-91. Trooper ii. 4wd, front. 2wd, front. Pick-up. To 11/1995.
$20.56
$20.56
